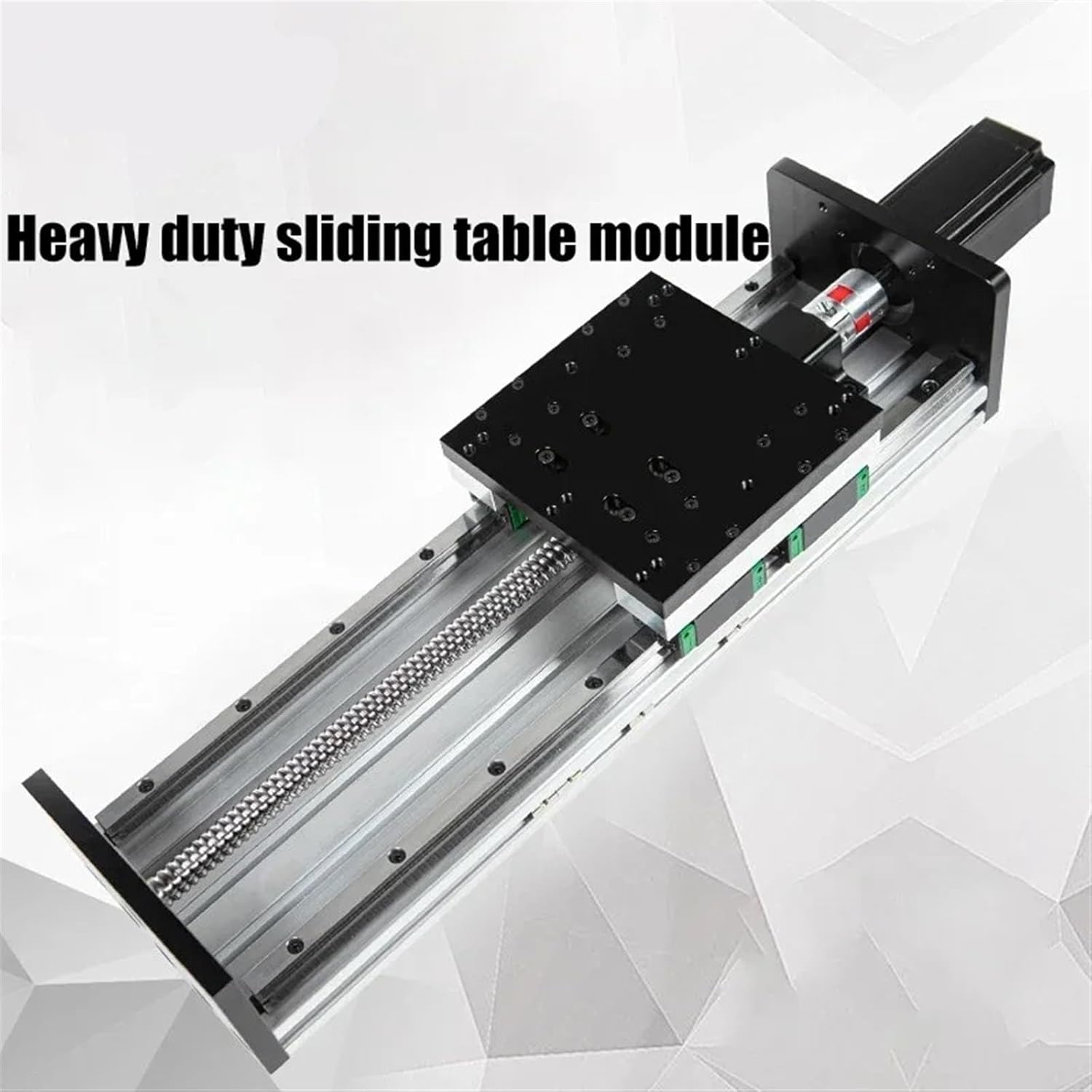

Miniature Linear Motion Guides Machines Heavy Duty Double Track Ball Screw Linear Module Guide Rail Precision Sliding Table(700mm)

1. Employs four-point contact guide rails and sliders, capable of withstanding loads from all directions, offering high strength and precision.2. The linear guide rails feature a ball cage design, allowing for interchangeable use when high precision requirements are not necessary.3. Easy installation with pre-drilled holes, facilitating quick and easy setup of a linear motion system.SpecificationsStroke: 100-2000MMHorizontal load: 150KGVertical load: 60KGMaximum speed: 100mm/sScrew model: SFU2505Guide width or diameter: 150mmBall screw accuracy: C7Repeat positioning accuracy: ±0.03mmDescriptionDouble-track transmission increases load, double-track transmission eliminates longitudinal clearance, runs more smoothly, and has load. Low-noise bearing steel rail, guide shaft is made of bearing material, with higher wear resistance, lower noise, and excellent workmanship. High-precision ball screw, flange-type nut screw, accuracy up to 0.05Package includesActuator * 186 Stepper Motor* 1DM860 Driver * 1Power Supply * 1Controller * 1 Limit Switch * 2

• 1. High rigidity, strong load-bearing capacity, smooth operation, and low noise.
• 2. Constructed with bearing steel and chrome-plated surface, achieving high-precision linear motion and a low coefficient of friction.
• 3. Widely used in precision measuring equipment and other mechanical equipment requiring precise linear motion.
• *Good automatic adjustment performance, high-precision, stable and smooth movement
• *Large lead high-speed movement, reducing movement time, more and stable
• *High positioning accuracy, low friction, not easy to slip, smooth and not stuck, long service life
